Hardware Products

Commander

Handheld button and LED board designed for CircuitPython with 4 buttons, 9 LED, SD card socket, 16MB FLASH and Accelerometer.

ClusterCTRL Stack

The ClusterCTRL Stack is a power and cooling controller for a stack of five Raspberry Pi.

Cluster HAT

HAT For the Raspberry Pi - USB Gadget Mode network (+serial) in a compact HAT.

15pin Camera Cable Joiner/Extender

Joins multiple Raspberry Pi camera cables together to extend the cable length (especially useful for the Pi Zero).

22pin (Zero) Camera Cable Joiner/Extender

Joins multiple Raspberry Pi camera cables together to extend Pi Zero sized cables.

22pin <> 15pin Camera Cable Adaptor

Use a 22pin camera on a full sized Pi, use a 22pin cable to go through a wall, etc.

AVRFT234

Small 6-pin AVR-ISP programmer using the FTDI FT234X and supported by Avrdude with a small addition to arvdude.conf. Can be used to program AVR IC and AVR based Arduino/clone bootloaders using the 6-pin SPI header.

Zero Dongle

Turns your Raspberry Pi Zero (all versions) into a USB dongle with no soldering

Butterfly

Enables the Raspberry Pi to be used with two HAT/pHAT at the same time.

Dual Supply for Raspberry Pi (Not Pi4)

Power your Raspberry Pi from multiple sources (PSU, Power bank, etc.) with load sharing

Solderless USB Serial Adapter (Pi Zero)

Solderless USB to Serial adapter for the Raspberry Pi Zero with FTDI USB IC (for bare GPIO)

Dual Ideal Diode - Barrel Jack

Power devices from multiple Power Supplies using barrel jack connectors. Supports 5-20 Volts and up to 5 Amps to add redundant power to Mini PC, router, monitor, CCTV, etc.

ClusterCTRL Single

The ClusterCTRL Single is a low-cost controllable USB Gadget carrier for the Raspberry Pi Compute Module. Breaking out 38 (non-power) GPIO so it's also useful where you need more than the 28 (non-power) GPIO pins accessible on the more regular 40 pin Raspberry Pi (A/B/A+/B+/Zero).

ClusterCTRL Triple

The Cluster Triple is a step up in CPU and RAM from the Cluster HAT by using Raspberry Pi Compute Modules (CM1/CM3/CM3+).

Cluster A+6

The Cluster A+6 is a side step from the original Cluster HAT and switches Raspberry Pi Zeros out for the more powerful quad core Raspberry Pi 3A+ (can also be used with the older A+ model).

USB Console Stub

USB to (3.3v) Serial adaptor for use with the Raspberry Pi with a pinout designed to plug straight onto Pi GPIO pins (26 or 40 pin).

Giant Butterfly

Allows four HAT or pHAT (or a mix) to be attached to a single Raspberry Pi 40 way connector.

3v3 Sustain for Raspberry Pi 4

When rebooting a Raspberry Pi 4 the 3.3 volt rail is reset which causes problems for some HATs. 3v3 Sustain fits in between a Raspberry Pi and a HAT/pHAT and provides a stable 3.3 volts (300 mA max) during reboots.

APlusCam

APlusCam is designed in the shape of a Raspberry Pi HAT with mounting holes for a Raspberry Pi Camera and suction cups allowing the camera can look out through a window.

USB-USB CDC Null Modem

It can be used to setup additional remote consoles between servers, file transfer, SLIP/PPP networking, heartbeats, etc. Uses USB CDC Serial so drivers are built into modern operating systems (Linux/Windows 10/Mac OS X/Android) so you can just plug and play.

USB CDC Serial Adaptor (5V)

A low cost USB serial Adaptor. Uses USB CDC Serial so drivers are built into modern operating systems (Linux/Windows 10/Mac OS X/Android) so you can just plug and play.

Micro USB CDC Serial Adaptor (3V3)

A low cost USB serial Adaptor. Uses USB CDC Serial so drivers are built into modern operating systems (Linux/Windows 10/Mac OS X/Android) so you can just plug and play.

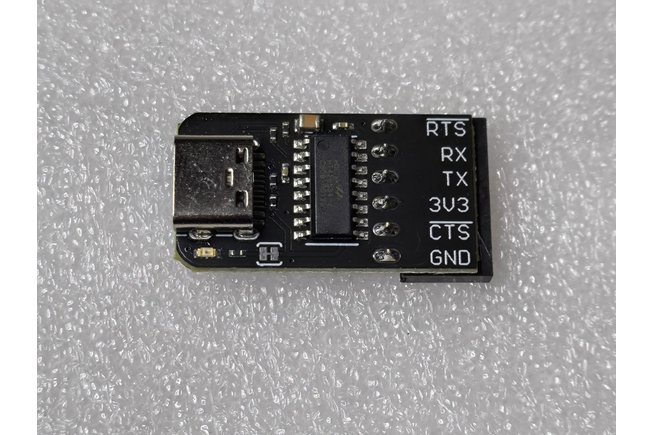

USB-C CDC Serial Adaptor (3V3)

A low cost USB-C serial Adaptor. Uses USB CDC Serial so drivers are built into modern operating systems (Linux/Windows 10/Mac OS X/Android) so you can just plug and play.

USB-C CDC Serial Adaptor (5V)

A low cost USB-C serial Adaptor. Uses USB CDC Serial so drivers are built into modern operating systems (Linux/Windows 10/Mac OS X/Android) so you can just plug and play.

USB Adaptor Kit

A 12 piece kit of both male/female USB Type-A and Micro USB connectors.

USB/PWR Splitter

Splits Power and Data connections from USB-A to micro USB for data + Barrel Jack or micro USB for power. Can be used to access the USB 2 controller on the Raspberry Pi 4 USB-C connection using a USB-A to USB-C cable.

USB-C/PWR Splitter

Splits Power and Data connections from USB-A to micro USB for data + Barrel Jack or micro USB for power. Can be used to access the USB 2 controller on the Raspberry Pi 4 USB-C connection using a USB-A to USB-C cable.

Solderless USB (CDC) Serial Adapter (Pi Zero)

Solderless USB (CDC) to Serial adapter for the Raspberry Pi Zero (for bare GPIO)

Micro USB Dual Supply

Dual Ideal Diode. Power devices from multiple sources with load sharing

5V USB-C Dual Supply - Dual Ideal Diodes

Dual Ideal Diode. Power a USB-C device from multiple sources with load sharing

Fan Controller for Raspberry Pi

Control the fan via GPIO (automatic temperature control using "gpio-fan" dtoverlay with the Raspberry Pi)

MMC (SD) HAT

Add a second MMC/SD interface to your Raspberry Pi (Disables WiFi on 3B/3B+ due to them both using the second SDIO interface. Can be used as a Micro SD card reader/writer, additional storage, RAID1/RAID0 root partition)

Pico Dongle Lite

Turns your Raspberry Pi Pico into a USB dongle.

The Pico Dongle Lite is a small micro USB plug to Type-A plug adaptor designed for use with the Pico H/W from Raspberry Pi but will be useful for many other jobs.

PicoADC16

16 port 10-bit ADC for Raspberry Pi Pico

PicoRelay8

Control 8 relays using a Raspberry Pi Pico [W]

Fake HAT

HAT Compliant EEPROM for the Raspberry Pi which can be used to develop HAT, configure your GPIO/load device tree on boot

USB Switch / Multiplexer

Share a USB2 device between two host machines.

USB Serial Adaptor (FTDI)

FTDI 3.3v UART to USB Adapter

I2C Multiplexer (8 port) pHAT

Connect multiple I2C devices without worrying about address conflicts (4 more on the underside). Automatically shows up as an 8 I2C busses. I2C voltage can be set to either 3v3 or 5v with solder bridge.

USB Power Splitter

Power two devices from a single micro USB supply (does not split USB data signals).

USB Power Switch

Control power to a USB2 device (on/off) using a switch, or GPIO from a Raspberry Pi, Arduino, etc. (Available in Normally On and Normally Off)

USB Power Switch (Dual)

Control power to two USB2 devices (on/off) using a switch, or GPIO from a Raspberry Pi, Arduino, etc. (Available in Normally On and Normally Off)

Zero Micro Dongle

Connect your Raspberry Pi Zero or Pi Zero W[H] directly to peripherals with a Micro USB port such as the Official Raspberry Pi Keyboard.

USB3 Power Switch

Switch power (only) for USB2 or USB3 devices using either a button/switch or GPIO output.

PicoUART6

6-port 3.3V UART to USB (CDC) and I2C bridge powered by the Raspberry Pi Pico.

USB3 Sever

Connect or disconnect USB3 (TX+,TX-,RX+,TX+) data , USB2 (D+/D-) data and switch up to 1.5 Amp of (5-20V) VBUS power using DIP switches.

PicoProbe Sled

Convert your Raspberry Pi Pico into a PicoProbe for debugging.

USB Power Switch Pro

Control power to your USB devices using a Raspberry Pi Pico

PiProbe

Debug and/or program your Raspberry Pi Pico from your Raspberry Pi.

3-pin SH Cable Joiner

Join or adapt 3-pin JST SH compatible cables.

USB-C Dual Supply Splitter (5V)

Dual Supply for Raspberry Pi 4/5

USB-C CDC Serial SH

3.3v UART CDC USB-C adapter with 3-pin SH connector compatible with Raspberry Pi 5 UART.

Bidirectional USB 3 Multiplexer

Share a USB 3 device between two hosts or switch between two devices on one host.

Pico Booster Breakout

Get easy access to Pico GPIO when plugged into a base board.

USB Interposer

RP2040 board with hardware USB Device (plug) and software USB Host (socket).

Quad I2C Expander for STEMMA QT/Qwiic

Add additional I2C devices to the bus.

M2.5 PCB Spacers

Thin PCB spacers for M2.5 screws.
